Sentieris

Small package,
big impact.

Sentieris' new rack monitoring product line combines open source control with high-accuracy rack probes to ensure an end-to-end, low cost solution that is unique within the data center and controls world. Unique daisy-chained probes guarantee ease of configurations and building integration systems without having to resort to aggregators, repeaters or home runs back to individual controllers.

Finally, in an industry unique solution, the Sentieris Visual Sensor can be used standalone, in a controlled/controller configuration and/or daisy-chained across multiple configurations... you determine how much hardware you need and never worry about having to purchase expensive add-ons to control simple, environmental monitoring.

Racklight

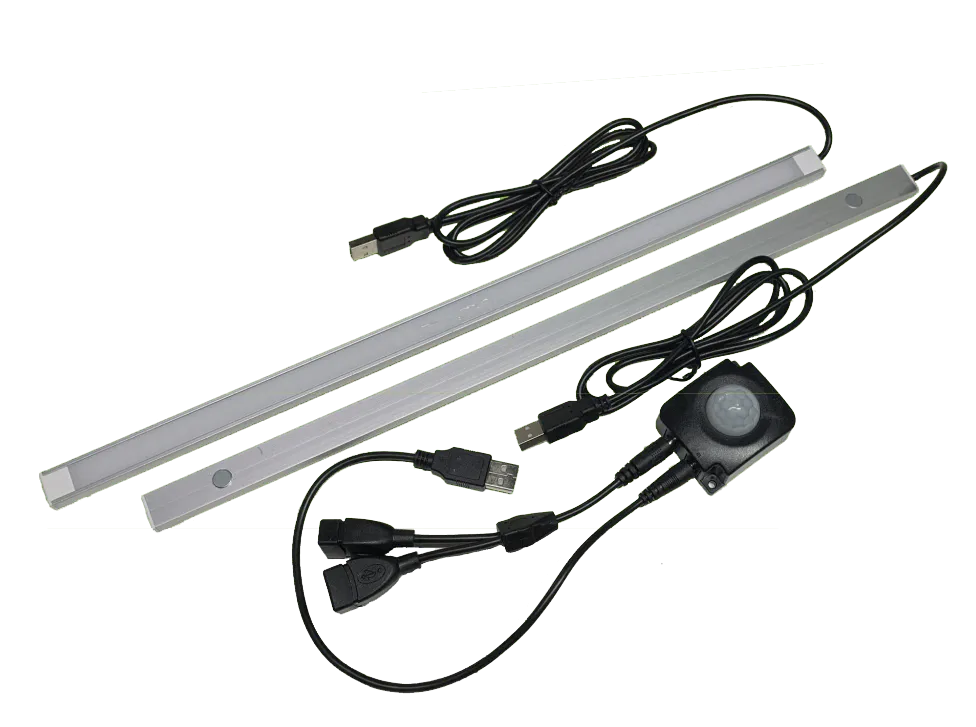

Sentieris Racklight

Sentieris

Racklight

Simple and elegant solution for in-rack lighting. Passive IR Motion Detector LED lighting provides hands free, easy to use lighting that provides an excellent, well lit, and visibly enhanced environment for technical work. Decreasing task load, increasing vision, adding accuracy and safety to technical operations.

Specs & Features

  • Two (2) USB magnetic light bars, can fit vertically or horizontally in rack
  • 5/8" (15mm) x 1/4" (7mm) x 15" (380mm)
  • Pure white light (6000K)
  • Power: 5VDC USB
  • Passive infrared sensor (PIR) proximity switch
  • Time delay 15s to 5m
  • Includes double-sided tape pads to mount activation switch

Visual Sensor Node

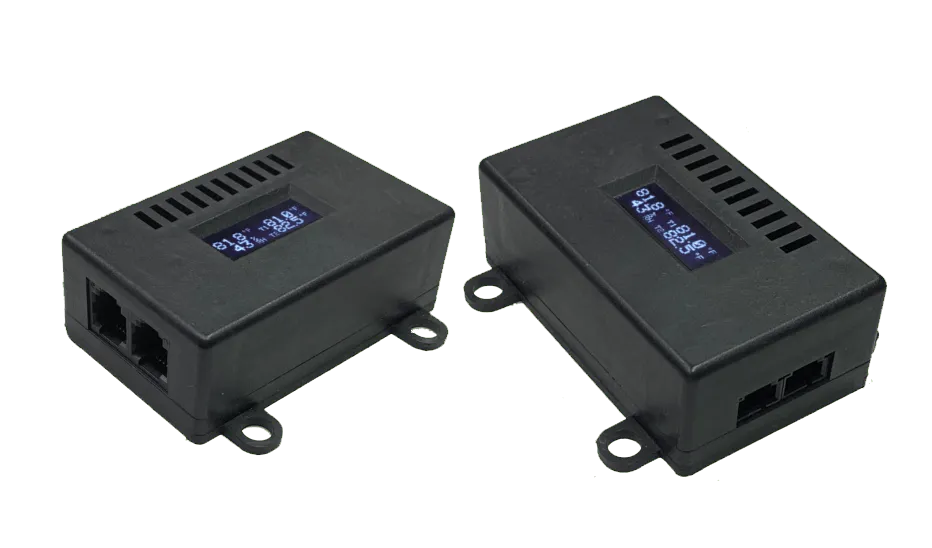

Sentieris Visual Sensor Node

Sentieris

Visual Sensor Node

The Visual Sensor Node (VSN) sensor collects real-time temperature and humidity data to protect critical data center equipment. The VSN offers 2 RJ12 ports for uplink and daisy-chaining and 2 Molex SL connector for external data ports. The unit may be daisy-chained with other VSN sensors to form a robust environmental monitoring grid. The VSN requires an Environmental Control Unit (ECU) for data connection and reporting. The plastic enclosure easily mounts anywhere in the data center or server racks with screws, zip ties, magnets or adhesive.

Specs & Features

  • Temperature
  • Displayed in °C or °F. Accuracy is ±0.5 °C from -20 °C to 80 °C
  • Operating: -25 °C (-4°F) min to 80 °C (176 °F) max
  • Storage: -40 °C (-40°F) min to 80 °C (176 °F) max
  • Humidity
  • Accuracy is ±2% from 20% to 80%
  • Storage: 5% min to 95% max (non-condensing)
  • Elevation
  • Operating: 0 m (0 ft) min to 2,000 m (6,561 ft) max
  • Storage: 0 m (0 ft) min to 15,240 m (50,000 ft) max
  • Electrical
  • 5 Volts DC, 2 Amps
  • Model# SE-PRL-01

Environmental Control Unit

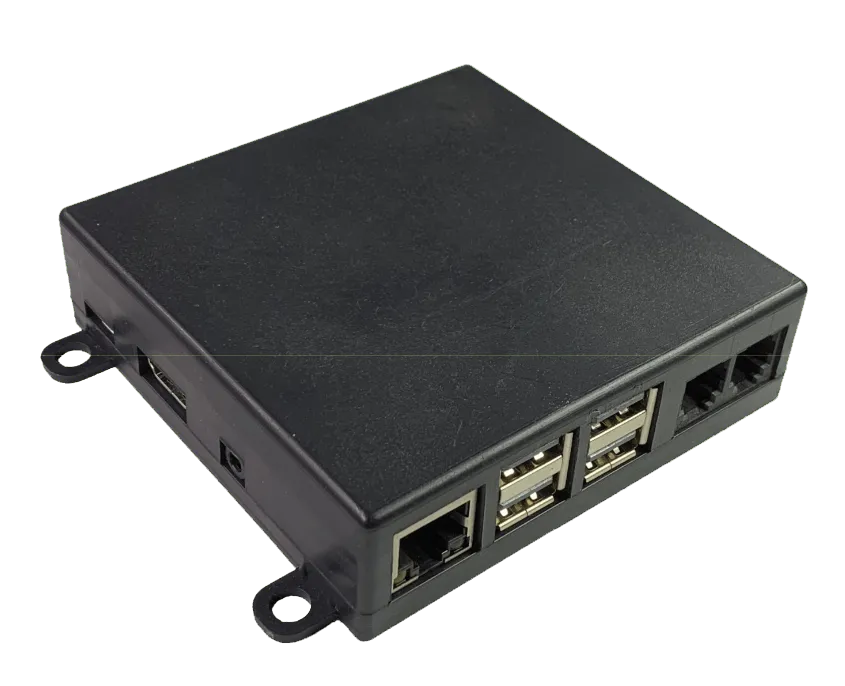

Sentieris Enviromental Control Unit

Sentieris

Environmental Control Unit

Environmental Control Unit (ECU) are simple to install and use, requiring no special software other than a standard Web browser. The ECU connects to a standard TCP/IP network with a standard RJ45 connector. 16 Visual Sensor Node (VSN) can be daisy-chained to a single ECU that is easily configured with a simple UI using a Web browser, allowing mul4ple racks to be monitored from a single ECU unit.

Specs & Features

  • 900MHz quad-core ARM Cortex-A7 CPU
  • 1GB RAM
  • 100 Base Ethernet
  • 4 USB ports
  • Full HDMI port
  • Combined 3.5mm audio jack and composite video
  • Micro SD card slot
  • VideoCore IV 3D graphics core
  • 2 RJ12 Port for Bus Connec4on 16 Max VSN Capacity
  • Sensor Data Logging & Graphing
  • SNMP (v1, v2c, v3)
  • Login Security
  • Micro USB power source up to 2.5A
  • Model# SE-ECU-AB01

Downloads

Datasheets and additional information

Sentieris Racklight Sentieris Visual Sensor Node Sentieris Environmental Control Unit

Want to know more? Ready to start?

Contact us today to learn more about how PMJ Systems and our partners can put these industry-proven solutions to work for you and your business.

Give us a call 276-755-3671 or email alwaysonpmjsystemscom
